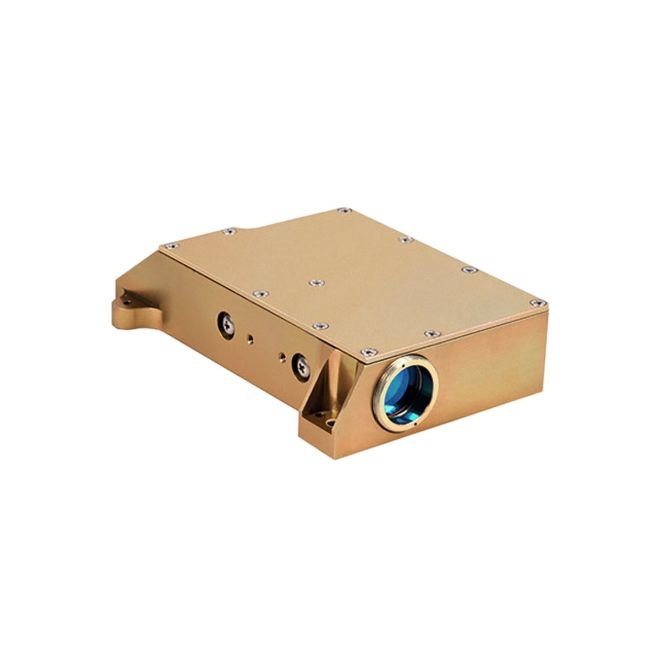

UltraMark
OPTOELECTRONIC LASER COMPONENT
The UltraMark® is a 3.6W very high powered, NIR commercial laser component designed for integration into EOIR systems.
SKU
D428UAV-410
The UltraMark® is a 3.6W very high powered, NIR commercial laser component designed for integration into EOIR systems. The UltraMark® is a one-piece laser that provides a collimated beam that can be used for pointing or illumination for higher magnification sensors. This laser is effective over longer ranges and has three modes of operation (low, high, and modulation).
| Part Number | D428UAV-410 |
|---|---|
| Beam Divergence | 3.8 mrad - 6.4 mrad (Horizontal and Vertical) |
| Dimensions | 3.70" L x 2.5" W x 1.0" H (not including mounting tabs) |
| Housing | 6061-T6 Aluminum, Stainless Steel Hardware |
| ITAR-Controlled | Yes |
| Laser Class | 4 |
| Laser Type | IR |
| Max Laser Class | 4 |
| Maximum Output Power | 4W |
| Model Number | D428UAV-410 |
| Output Power | Minimum: 3.2W | Typical: 3.5W | Maximum: 4.0W |
| Power Source | 9 Pin D-Sub Connector |
| Restriction | Sales restricted to Federal, State and local government law enforcement agencies through a direct purchase order. |
| Wavelength | 860 nm ± 10 nm |
| Weight Total (Kit with Body) | 10.3 oz |
| Weight w/o Batteries | N/A |
