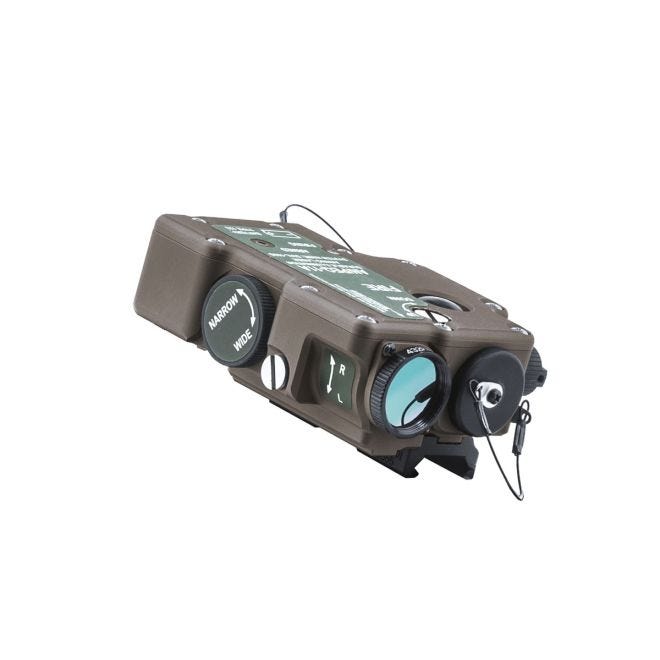

DIAL 100G - AN/PEQ-11A (Discontinued)
CREW SERVED MULTI-FUNCTION AIMING LASER
The DIAL 100G (AN/PEQ-11A) is a high power multi-function aiming laser combining an infrared (IR) pointer/illuminator and high power visible green laser.
$0.00
Out of Stock
SKU
429P
The DIAL 100G (AN/PEQ-11A) is a high power multi-function aiming laser combining an infrared (IR) pointer/illuminator and high power visible green laser. The DIAL 100G was specifically designed to provide day and night target marking capabilities, while handling the shock and vibe of the crew served weapon platforms utilized by the U.S. Navy Special Operations boat teams.
The DIAL 100G contains three separate lasers: a visible green beam pointer, an infrared pointer, and an independent infrared flood, capable of adjusting from 4 degrees to a fully-open 55 degrees. The housing and construction of the DIAL 100G is uniquely constructed to interact with the rigors of weapons platforms like the M240 and M2.
| Part Number | 429P |
|---|---|
| Azimuth & Elevation | 0.25 mrad per click |
| Battery Life | C123: 5 hours | 1.5V AA Cell: 1 hour |
| Beam Divergence | Red Beam: 0.5 mrad Horizontal. 0.4 mrad Vertical. Aiming Beam: 0.4 mrad (0.023°) Horizontal. 0.5 mrad (0.029°) Vertical Narrow Illumination Beam: 8.7 mrad (0.5°) Horizonal. 5.9 mrad (0.34°) Vertical. Wide Illumination Beam: 960 mrad (55°) Horizontal. 646 mrad (37°) Vertical |
| Dimensions | 3.75” L x 3.00” W x 1.20" H |
| Environmentally Sealed | Yes. Waterproof to 20m up to 2 hours |
| Housing | 6061-T6 Anodized Aluminum, Matte Finish, O-ring Seals |
| ITAR-Controlled | Yes |
| Laser Class | 3B | 3A (Training) |
| Laser Type | Visible Green/IR |
| Lumens | N/A |
| Max Altitude | 50,000 Ft. |
| Max Laser Class | 3B |
| Maximum Output Power | 150 mW |
| Model Number | 429P |
| Operational Temp | -29°C to +49°C |
| Operational Temperature Range | -29°C to +49°C |
| Output Modes | RED, IR |
| Output Power | Red Beam: 20 - 30 mW | Illumination Beam: 55 - 110 mW | Aiming Beam: 30 - 40 mW |
| Output Power Modes | RED, IR |
| Power Source | 1 CR123 // One 1.5V AA Cell |
| Restriction | Sales restricted to Federal, State and local government law enforcement agencies through a direct purchase order. |
| Storage Temperature Range | -34°C to +55°C |
| Wavelength | Red Beam: 622 - 648nm | IR Beam: 850 ± 20 nm |
| Weight Total (Kit with Body) | 10.9 oz |
| Weight w/o Batteries | 10.9 oz |
