IZLID® ULTRA Airborne Kit

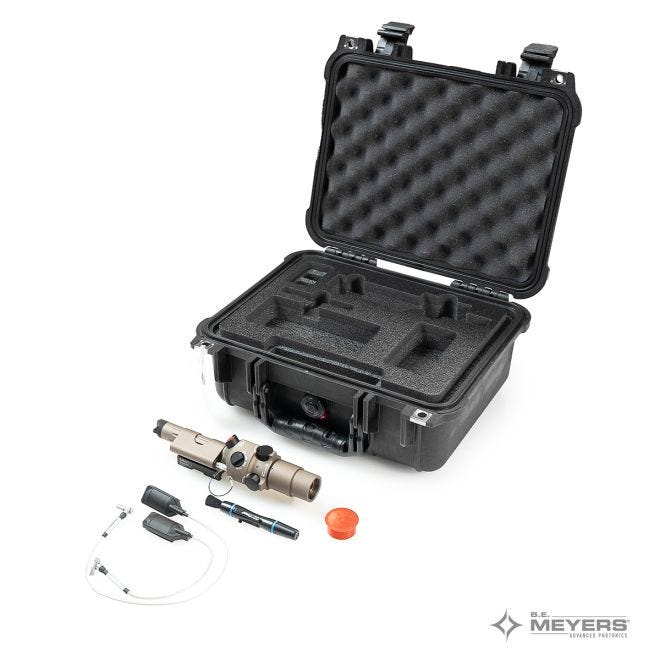

The IZLID® Ultra Airborne Kit (NSN: 5860-01-697-2989) is based on a the IZLID® Ultra high-power infrared laser device most notably used in air-to-ground integration roles, with up to 1-Watt of near infrared power on target for target marking and for long-range communication while using night vision devices.
The IZLID® Ultra Airborne Kit (NSN: 5860-01-697-2989) is based on a the IZLID® Ultra high-power infrared laser device most notably used in air-to-ground integration roles, with up to 1-Watt of near infrared power on target for target marking and for long-range communication while using night vision devices. Powered by (2) CR123 batteries, the IZLID Ultra Airborne Kit has low-power, high-power, and pulse settings and can be configured as either a pointer or narrow divergence illuminator dependent on end-user preference. This system can be mounted to any MILSTD-1913 rail and comes with two remote activation options.
The IZLID® Ultra series of laser systems, like all B.E. Meyers & Co. products, are proudly Made in the USA. This system is currently in production available for sale to MIL/GOV entities in the US and internationally and is ITAR-controlled.
| NSN | 5860-01-697-2989 |
|---|---|
| Part Number | 434P-ABNKIT |
| Azimuth & Elevation | 0.6 MOA ± 0.2 MOA per click |
| Beam Divergence | Minimum Beam: 1.4 mrad ± 0.3 mrad Horizontal. 0.18 mrad ± 0.03 mrad Vertical. Lens Stop: 1.5 mrad ± 0.3 mrad Horizontal. 1.1 mrad ± 0.03 mrad Vertical. Wide Beam: >12 mrad Horizontal and Vertical |
| Dimensions | 8.9” L x 1.7” W x 1.8” H |
| Environmentally Sealed | Yes. Waterproof to 20m up to 2 hrs. |
| Housing | Anodized Aluminum |
| ITAR-Controlled | Yes |
| Laser Class | 4 |
| Laser Type | NIR |
| Lumens | N/A |
| Max Altitude | 50,000 Ft. |
| Max Laser Class | 4 |
| Maximum Output Power | 990 mW |
| Operational Temp | -20°C to +50°C |
| Output Modes | Low // High // 3-5Hz Pulse |
| Output Power | 390 mW - 990 mW |
| Power Source | 2 CR123 |
| Restriction | Sales restricted to Federal, State and local government law enforcement agencies through a direct purchase order. |
| Storage Temperature Range | -40°C to +70°C |
| Wavelength | 860 nm ± 25 nm |
