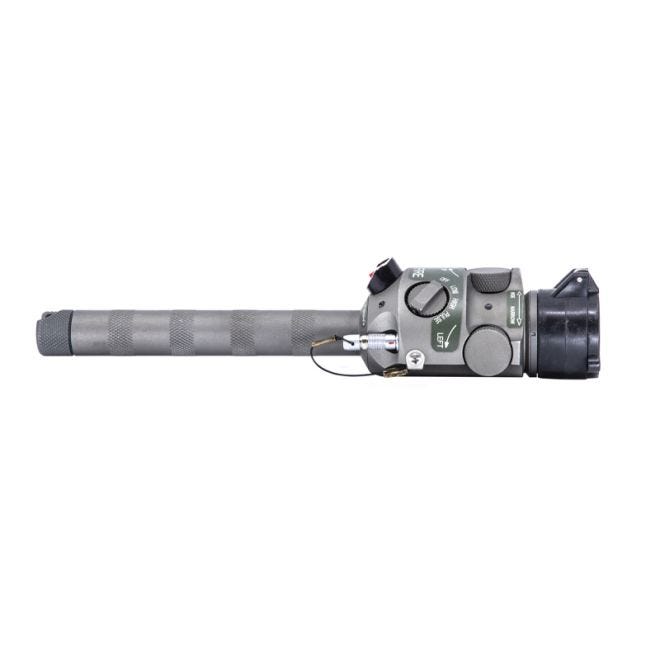

IZLID® 200P AA
INFRARED ZOOM LASER ILLUMINATOR DESIGNATOR
The IZLID 200P is a compact, lightweight infrared (IR) laser pointer and illuminator small enough for hand-held applications or mounted to a variety of weapon platforms.
SKU
425P-A2-AA
The IZLID 200P is a compact, lightweight infrared (IR) laser pointer and illuminator small enough for hand-held applications or mounted to a variety of weapon platforms. It is ideal as a commander’s pointer, for target marking, and for NIR communication with aircraft.
Designed and built for extreme environmental conditions, including exterior aircraft mounting, the rugged IZLID 200P is powerful enough to effectively support joint fires or can be easily adjusted to support weapons mounted applications with illumination beyond 800m. With greater target awareness and effective engagement at extended ranges, the IZLID 200P is ideal for both aircraft and vehicle-mounted crew served weapon applications.
This is the laser only variant of the IZLID 200P (425P-A2-AA), and ties to the NSN of 5855-01-505-3103. This is the laser that is supplied whenever a request comes in that ties to the NSN (i.e. via DLA, GSA, etc.). This model of the IZLID 200P comes with no mount.
The 425P-A2-AA is easily identifiable as it has a Butler Creek Flip Cap.
Since this is just the laser by itself, usually it is purchased for handheld use (i.e. JTAC, Commander’s Pointer, etc.).
NSN | 5855-01-505-3103 |
---|---|
Part Number | 425P-A2-AA |
Azimuth & Elevation | 0.36 mrad |
Beam Divergence | Narrow: 0.30 mrad (0.017°) Horizontal. 0.20 mrad (0.011°) Vertical. Wide: 85.0 mrad (4.9°) Horizontal. 30.0 mrad (1.7°) Vertical |
Dimensions | 8.5” L x 1.7” W x 1.8” H |
Environmentally Sealed | Yes. Waterproof to 20m up to 2 hrs. |
Housing | 6061-T6 Grey Anodized Aluminum, Matte Finish, O-ring Seals |
ITAR-Controlled | Yes |
Laser Class | 3B |
Laser Type | IR |
Lumens | N/A |
Max Altitude | 50,000 Ft. |
Max Laser Class | 3B |
Maximum Output Power | 195 mW |
Model Number | 425P-A2-AA |
Operational Temp | 0°C to +50°C |
Operational Temperature Range | 0°C to +50°C |
Output Modes | Low // High // 3-5Hz Pulse |
Output Power | 105 mW - 195 mW |
Output Power Modes | Low // High // 3-5Hz Pulse |
Power Source | 2 AA cells |
Restriction | Sales restricted to Federal, State and local government law enforcement agencies through a direct purchase order. |
Storage Temperature Range | -40°C to +70°C |
Wavelength | 830nm ± 10nm |
Weight Total (Kit with Body) | 9.8 oz |
Weight w/ Batteries | 9.8 oz |
