IZLID® 200P 3V
INFRARED ZOOM LASER ILLUMINATOR DESIGNATOR

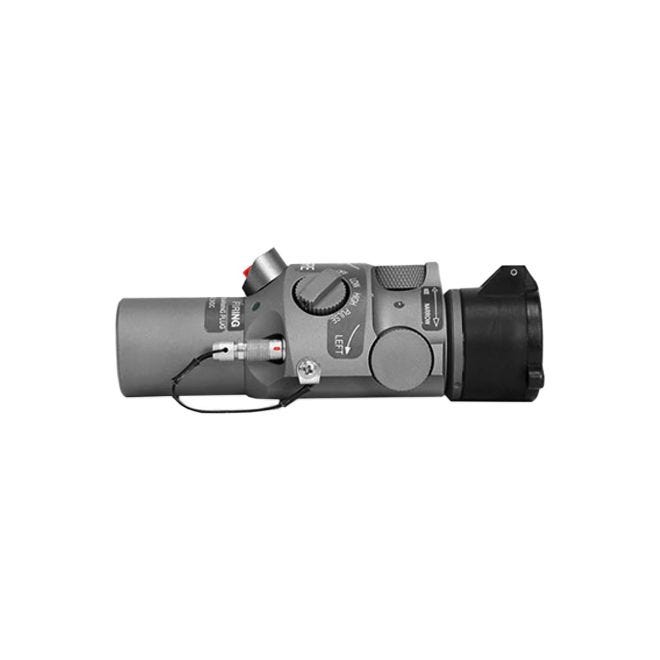

The IZLID® 200P 3V is a 195mW externally powered version of the rugged IZLID series laser products.
SKU
425P-A2/S3V
The IZLID® 200P 3V is a 195mW externally powered version of the rugged IZLID series laser products. The laser mode is set by manually setting the mode select switch to the desired low, high, or pulse modes. This IR laser can be set up as a pointer or an illuminator by manually rotating the laser lens for the desired divergence. Designed for extreme environments.
Part Number | 425P-A2/S3V |
---|---|
Azimuth & Elevation | 0.36 mrad |
Beam Divergence | Narrow: 0.30 mrad (0.017°) Horizontal. 0.20 mrad (0.011°) Vertical. Wide: 85.0 mrad (4.9°) Horizontal. 30.0 mrad (1.7°) Vertical |
Dimensions | 5.22” L x 1.70” W x 1.8” H |
Housing | 6061-T6 Grey Anodized Aluminum, Matte Finish, O-ring Seals |
ITAR-Controlled | Yes |
Laser Class | 3B |
Laser Type | IR |
Lumens | N/A |
Max Altitude | 50,000 Ft. |
Max Laser Class | 3B |
Maximum Output Power | 195 mW |
Model Number | 425P-A2/S3V |
Operational Temp | 0°C to +50°C |
Operational Temperature Range | 0°C to +50°C |
Output Modes | Low // High // 3-5Hz Pulse |
Output Power | 105 mW - 195 mW |
Output Power Modes | Low // High // 3-5Hz Pulse |
Restriction | Sales restricted to Federal, State and local government law enforcement agencies through a direct purchase order. |
Storage Temperature Range | -40°C to +70°C |
Wavelength | 830nm ± 10nm |
Weight Total (Kit with Body) | 8.5 oz |
Weight w/o Batteries | N/A |
