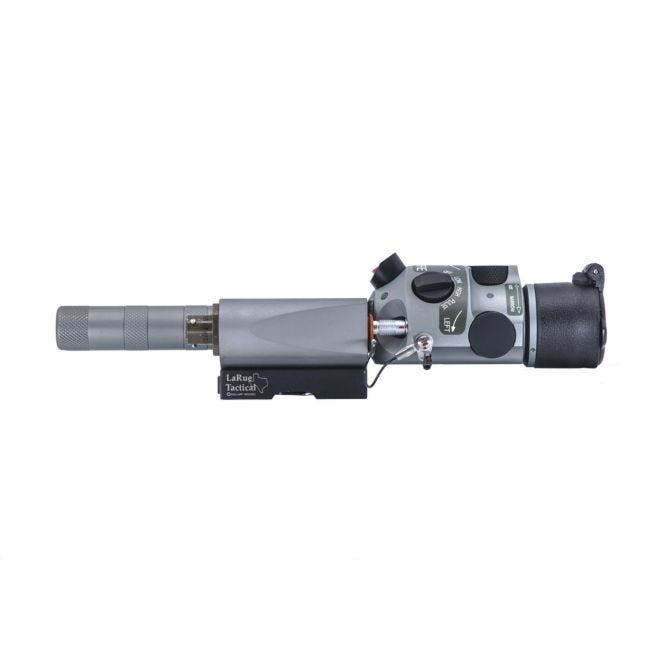

IZLID® 200P ABD KIT
INFRARED ZOOM LASER ILLUMINATOR DESIGNATOR
This is a standard 425P-A2-AA laser combined with the external activation “Airborne” coaxial mount kit configuration with Canon connector, utilizing a LaRue mount.
SKU
KIT-IZLD-AA-ABD-A-GY01-L01-P01
`
| Part Number | KIT-IZLD-AA-ABD-A-GY01-L01-P01 |
|---|---|
| Azimuth & Elevation | 0.36 mrad |
| Beam Divergence | Narrow: 0.30 mrad (0.017°) Horizontal. 0.20 mrad (0.011°) Vertical. Wide: 85.0 mrad (4.9°) Horizontal. 30.0 mrad (1.7°) Vertical |
| Dimensions | 8.5” L x 1.7” W x 1.8” H |
| Environmentally Sealed | Yes. Up to 20m |
| Housing | 6061-T6 Grey Anodized Aluminum, Matte Finish, O-ring Seals |
| ITAR-Controlled | Yes |
| Laser Class | 3B |
| Laser Type | IR |
| Lumens | N/A |
| Max Altitude | 50,000 Ft. |
| Max Laser Class | 3B |
| Maximum Output Power | 195 mW |
| Model Number | KIT-IZLD-AA-ABD-A-GY01-L01-P01 |
| Operational Temp | 0°C to +50°C |
| Operational Temperature Range | 0°C to +50°C |
| Output Modes | Low // High // 3-5Hz Pulse |
| Output Power | 105 mW - 195 mW |
| Output Power Modes | Low // High // 3-5Hz Pulse |
| Power Source | 2 AA cells |
| Restriction | Sales restricted to Federal, State and local government law enforcement agencies through a direct purchase order. |
| Storage Temperature Range | -40°C to +70°C |
| Wavelength | 830nm ± 10nm |
| Weight Total (Kit with Body) | 9.8 oz |
| Weight w/ Batteries | 9.8 oz |
