BOARS®-M2

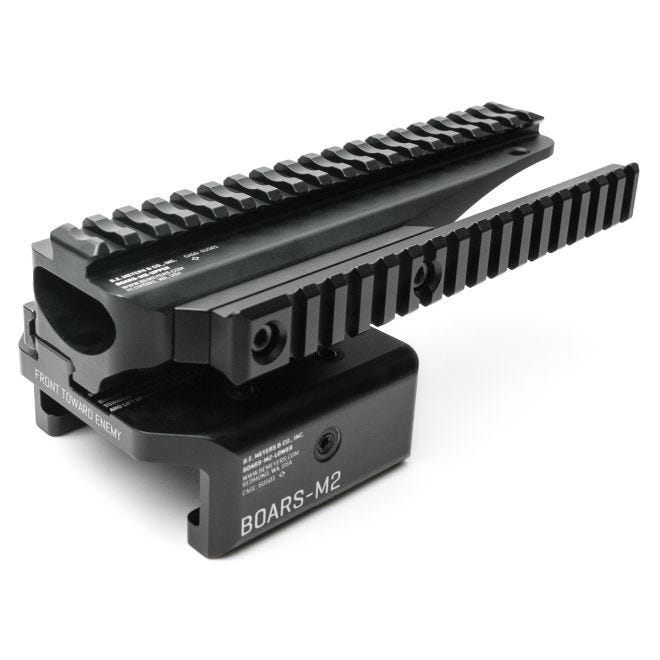

The BOARS®-M2 (B.E. Meyers & Co. Optics & Accessory Rail System for the M2) is a low-profile mounting solution that offers a quick-disconnect with true return-to-zero reattach.
The BOARS®-M2 (B.E. Meyers & Co. Optics & Accessory Rail System for the M2) is a low-profile mounting solution that offers a quick-disconnect with true return-to-zero reattach. The base of the mount is installed via friction clamps and is meant to remain on the host platform, while the detachable rail can be removed and reattached at will, and will retain zero of all optics and laser systems mounted. The detachable rail incorporates rail segments for mounting most common laser systems in conjunction with a top mounted optic, while still clearing the gap in a M2 shield.
The BOARS®-M2 features the lowest profile of any current M2 optics mount and allows the user to keep their head as low behind the shield as possible while still having a pass-through to utilize the standard M2 iron sights if necessary. The entire design is snag free so as not to interfere with the operation of the host weapon. While designed to be left in place, the base of the mount can be easily removed as needed. Upon re-attachment, the BOARS-M2 will re-index to the same location without damaging the weapon surfaces.
NSN | 1240-01-682-8650 |
---|---|
Part Number | BOARS-M2 |
Dimensions | 7.5” (L), 3.62” (W), 3.22” (H) |
Mount Type | Picatinny |
Weight Lower | 12.7 oz |
Weight Total | 28.7 oz |
Weight Upper | 16.0 oz |
